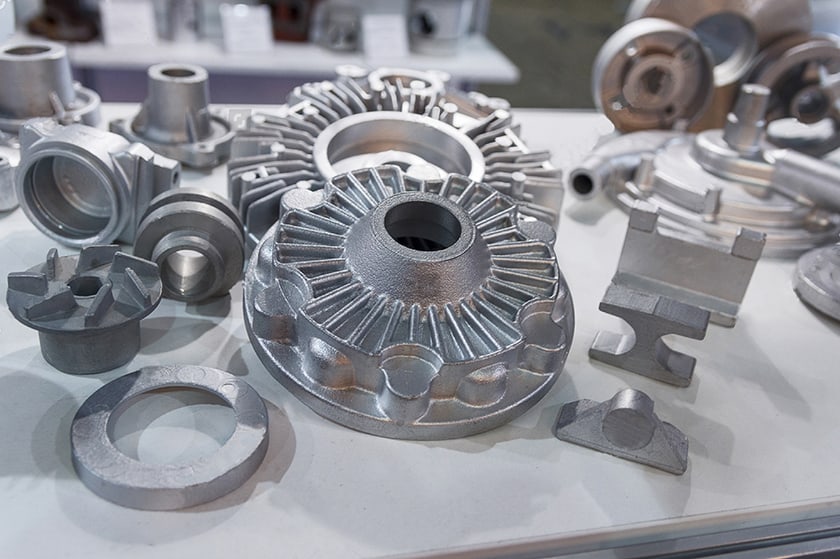

Aluminum sand casting is one of the popular ways to produce parts and components of aluminum alloy, and combines the benefits of flexibility, economic cost, and possibility to cast complex geometries. The technology that is used in this process is the pouring of molten aluminum into a sand mold to create a solid component after cooling and solidifying. It is in high demand in such operations as automotive, aerospace, and manufacturing to make complex parts, prototypes, and products with high volume. We shall find below the basics of casting in aluminum sand, the process to be followed, its benefits and its uses.

What is aluminum sand casting?

Aluminum sand casting is a metal casting process in which aluminium alloy is melted and poured into a sand mould. The pattern is made by compressing a sand mold around the pattern of the item to be cast and this produces a hole into which molten aluminum is poured. After a given time, the aluminum cools and solidifies, and the mold is broken to show the final part. Sand cast V is one of the oldest as well as most flexible forms of casting, and it can be used to produce both small and large aluminium components.

What is the Appeal of Aluminum Sand Casting?

• Inexpensive: It is relatively cheap to promote low to middle-volume production, in particular, complex and large parts.
• Flexible: It is flexible and has the ability of being used in simple and complex shapes.
• 다용도성: Aluminum is very versatile and can be used in a wide variety of applications, such as automobile bodies, aerospace, or even in industrial machinery because it has a lighter weight and does not corrode.

The process of aluminum sand casting is a crucial manufacturing process. It is simple, versatile, and the process has the capability of producing robust and durable parts at a very affordable cost.

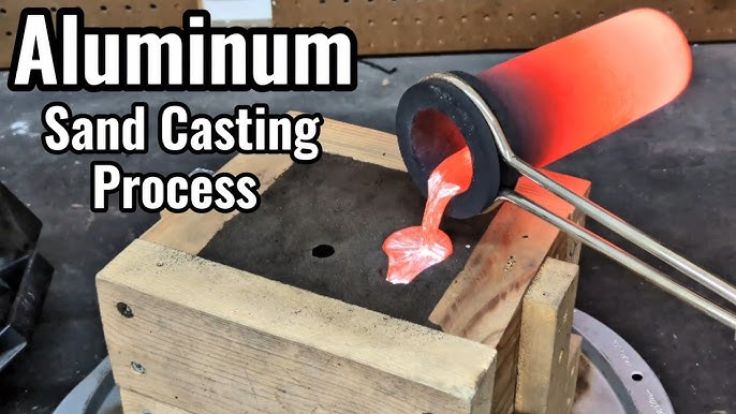

Processing of Aluminum Sand Casting

These are the critical steps involved in the generally involved procedures of aluminum sand casting processes:

1. 패턴 만들기: The initial part of casting aluminum sand also starts with creating the pattern. The pattern is a duplicate of the piece that is going to be manufactured and can normally be composed of wax, metal or other non-permanent substance. Patterns are made with the shrinkage of the aluminum in mind, that as it cools, it must contract, and patterns are usually coated with either a thin layer of sand or other courses to allow the pattern to be removed more easily after casting.

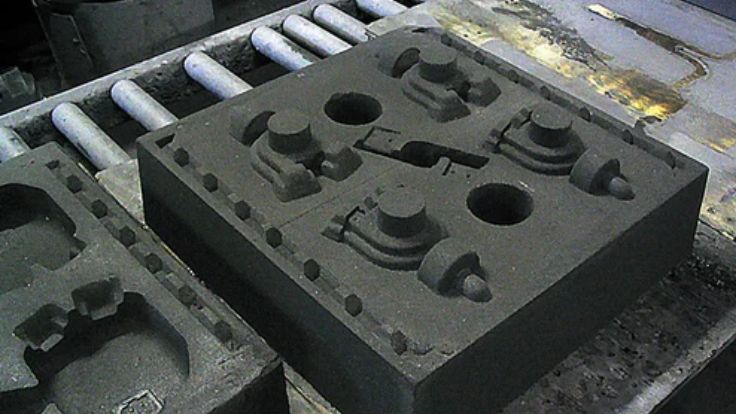

2. Mold Making: When the pattern is prepared then the mold is formed using the pattern. The pattern is covered by packing a combination of sand and binder together in order to form the mold. This is usually a special kind of sand which is combined with a binding agent, such as clay or resin, to make it firm up. To make a solid mold around the pattern, the sand is compacted tightly so as to leave room where the molten aluminum will run and shape the component.
3. Core Making: In case the part that is to be cast has hollow outlets or cavities, it would be cast, then the cores would be made and cast into the cavity of the mold. In the subsequent casting they prepare cores that are constructed of sand or other material and those are arranged so that the interior features are desired in the final casting.

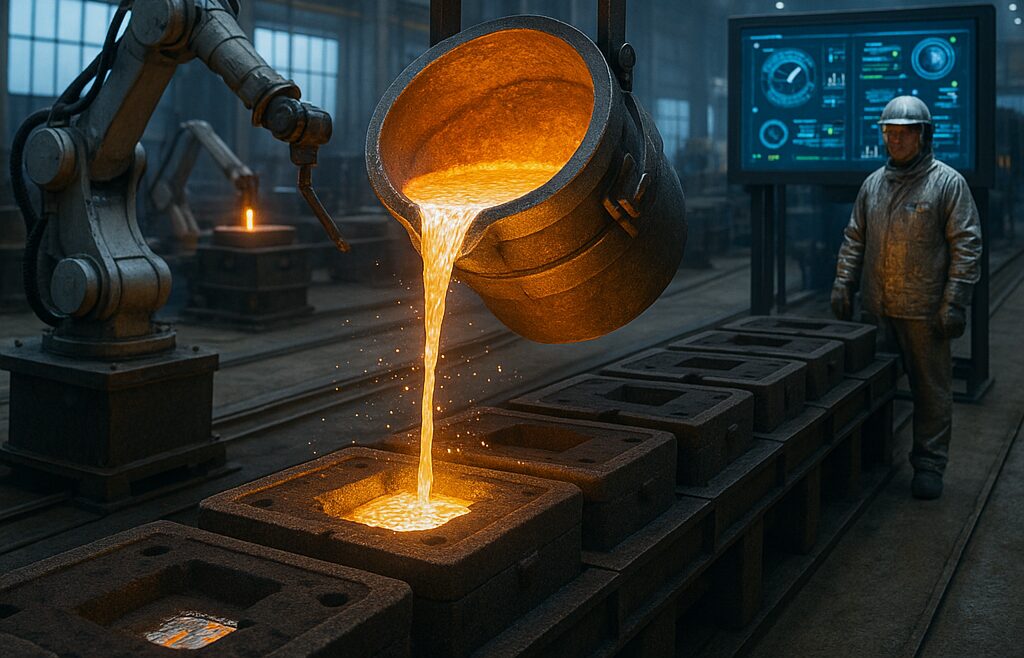

4. Melting and Pouring: After the mold is prepared then there is melting of the aluminum in a furnace. The melting point of aluminum is relatively low (varying around 660 o C or 1220 o F), thus it is easy to be melted to be cast. The melted aluminum is subsequently made to slowly pass through a gating system or a sprue at the mold cavity. The mold takes the pattern shape, and the metal fills the mold.
5. Pouring and Solidification: When the mold is poured, the molten aluminum solidifies, as it cools. The rate of cooling may influence the final properties of the material, e.g. the strength and the surface finish of the material. Depending on the size and complexity of the casting, cooling may require several minutes to hours.
6. Mold Casting off: The mold is broken off by the action of cooling the aluminum and solidifying it. It is usually manipulated manually or with machine objects. The mold in sand is broken and the part is taken out.
7. 마무리: Following the removal of the part, they can undergo further finishing procedures like sandblasting, machining, or surface processes in order to supply it with the preferred dimensions, texture and finish.

Forms of Aluminum Sand Casting

Sand aluminum casting can be classified into a few different types in terms of the type of molding and in terms of the molding material. All the types have unique characteristics that are better applied in different areas of use and production. Some of the major categories of aluminum sand casting are:

• 녹색 모래 주조
• Resin Sand casting
• Mold Casting (or Lost Foam Casting)
• No-Bake Sand Casting
• This is the Cold Box Sand Casting.
• The precision sand casting was called Shell Molding.

1. Green Sand Casting

The most common and the cheapest type of sand casting is the green sand casting. It has a combination of sand, water and clay to complete the mold. This is done by creating a mold on moist or green sand, which gives it the bondability that it requires. Molds made of green sand are simple to create, one can use them multiple times, and it may take comparatively a short period to do this.

장점:

• They are cheap and can easily be applied in low to medium-volume production.
• It can be used to manufacture big and small parts.
• The process of mold making is simple and time-saving.
• The recycling of sand can be done after every casting

단점:

• Uneven texture of the cast as compared to other casting procedures.
• The lower dimensional accuracy
• The moisture in the mold can cause more porosity in Can.

애플리케이션:

• Engine blocks and cylinder heads are automotive parts.
• Big industrial machines
• Different parts of machinery

2. Resin Sand Casting

The resin sand casting involves mixing sand and an artificially formed resin to be used as the bonding material. This process will give a stronger and permanent mold than the green sand process, as the resin bonding agent will be stronger, and the results will give surface quality and strength. The resin sand is more difficult, thus allowing more intricate and finer mold designs.

장점:

• Produces a high-quality finish and smooth parts.
• Molds of superior type are characterized by increased tolerance
• Enables an increased rate of production and reduced miniaturized parts.

단점:

• Higher material expense as compared to green sand
• Takes time to cure the resin to harden.
• These are not well-suited to very large castings.

애플리케이션:

• components of precision technology
• Part that needs high finish, such as gears and turbines.
• Aerospace and automobile components.

3. Lost Foam Casting (Lost Foam Casting)

This method of casting is used to produce many automobiles. The pattern takes the shape of a foam shell and is coated with a ceramic slurry. In the traditional process, the shape of the foam is liquefied by the hot metal to form a hole that is the mold. This is beneficial in the way it helps one make shapes which are otherwise complicated to make using regular molds.

장점:

• I can create complex forms properly.
• The masterpiece of the beautiful shapes and decoration.
• Offers excellent finishing, which normally needs very little finishing.

단점:

• They are expensive compared to the traditional process of sand casting.
• Takes more time as the ceramic shell has to be cured.
• It is not applicable in mass production.

애플리케이션:

• A turbine blade is a component of an aircraft.
• Medical instrument precision: The precision tool of medicine
• Bits of small things.

4. No-Bake Sand Casting

In no-bake sand casting, a chemical binder, which does not need to dry or be baked, sand mixture is bound together. It is possible to make the mold and use it to cast the material. The sand mixture is made in no-bake sand, which is normally cured chemically and not by heat, thus becoming more efficient in some applications.

장점:

• Faster than traditional methods because no baking or drying of the food is done
• The surface States are completed in a good way
• It is used in low and mid-volume manufacturing.

단점:

• Well, it is not really the best for very high-volume production, as the binder requires time to cure.
• Less accuracy is likely to be had with it, as in shell molding.

애플리케이션:

• Industrial parts of small and medium size.
• Industrial Welding, e. brackets, flange.
• The complex shape that is inscribed in any country.

5. Sand Casting Cold Box

Cold box sand casting A cold-curing chemical binder is used in the construction of the mold. The binder is mixed with sand, and the resultant mixture is pressed in a mold box around a design of artwork. The sand mixture is hardened in the mold by gas (typically amine gas), and this is done by packing. The method has the advantage of high-strength molds required in production of the most intricate and precise parts.

장점:

• The is very strong and very dimensionally accurate.
• It can be used in the manufacturing of thin-walled and complex parts.
• Helps to minimize the flaws of the moulding i.e. porosity and shrinkage.

단점:

• Banning of the cost of raw materials
• It has special treatment and paraphernalia.

애플리케이션:

• Superalloy on the turbine blades is an example of an aerospace product.
• Exact components that have to be correct, Six-sigma engineering
• Components carmaker’s performance.

6. Accurate Sand Casting

Shell molding refers to the process whereby the mixture of fine sand is applied to a pattern which is made of metal. When the metal pattern has been heated, fine sand (generally combined with a binder, e.g. sodium silicate) is placed on the pattern and the heat is left to cure the sand pattern. Such molds are cast in a furnace. Accuracy in this process is good surface finishing and accuracies in dimensioning.

장점:

• It is easy and correct.
• It is best used in the casting of small to medium size parts.
• Less machining of the post casting is done.

단점:

• It becomes costlier and time-consuming compared to green sand casting.
• They were restricted to smaller components that had a fairly low complexity.

애플리케이션:

• The fine precision parts are the machine parts, such as gears and valve parts.
• Medical implants are also other high-precision implants.
• Surface finish: Part of a car that needs a good surface finish

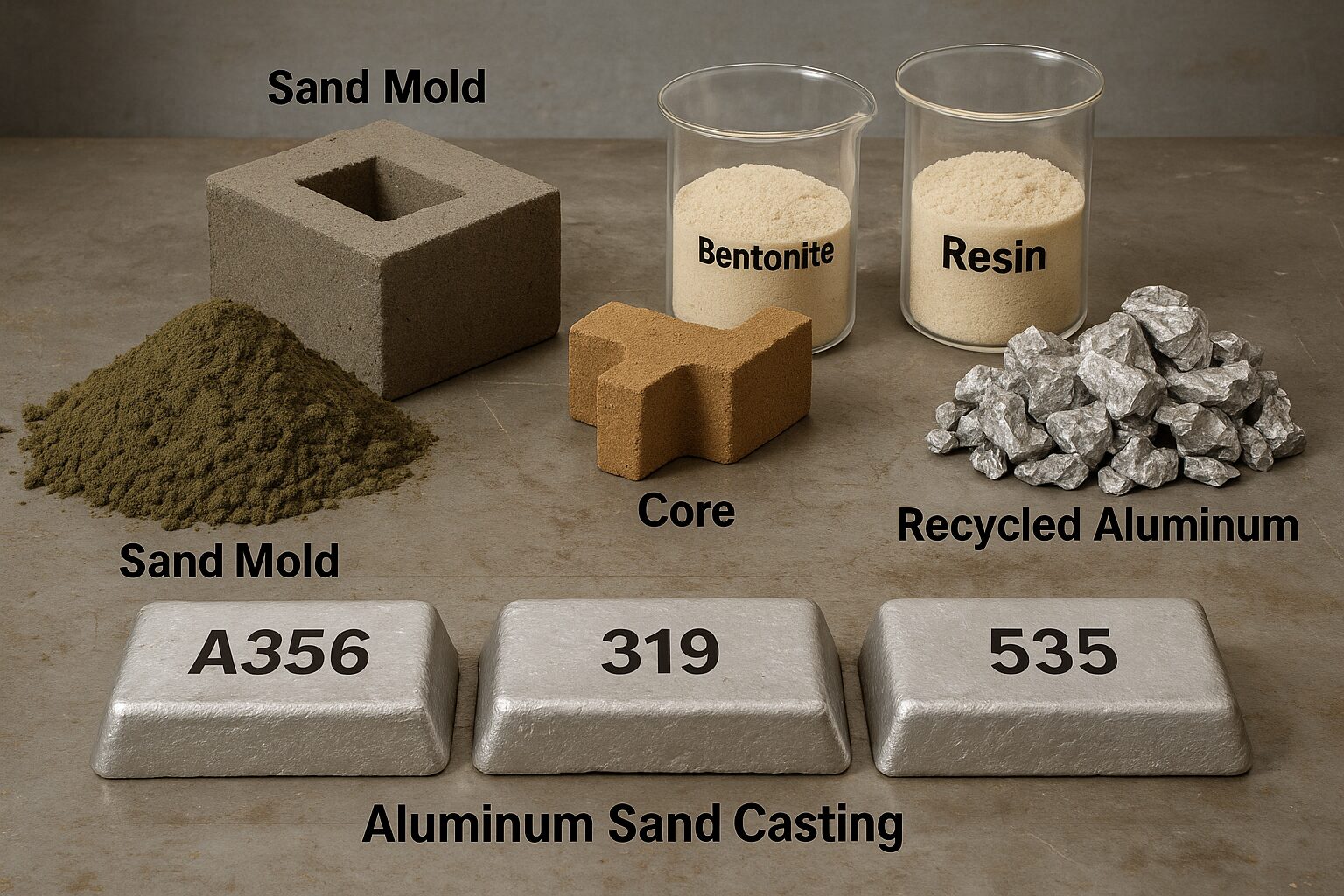

Aluminum Sand casting materials

These come in various varieties according to the materials in aluminum sand casting that are very crucial in the creation of the final product, which defines strength and durability in addition to the quality thereof. The principal raw materials are the base metal (aluminum alloy), the molding sand, the binder material and the additives. What are they and how do they operate? I would like to get a closer look at each of them.

1. 알루미늄 합금

The aluminum alloys are very important in the process of sand casting since they determine the final product strength, corrosion resistance and ease of casting. Other less characteristic alloys include A356, A380 and A413, which are based on area of usage, like vehicle and aerospace components and property specification, like ductility, fluidity and wear resistance.

2. Molding Sand (Sand)

The cavity of the mould consists of sand used in the casting of the aluminum. The most widespread silica sand is used as it has a high melting point and is readily available, though there may be other kinds of sand, like chromite or zircon sand, to obtain greater strength and accuracy. The type of sand matters because of the quality of its finish on the surface, as well as the thermal stability of the mold.

3. Binder Materials

The binders are used to provide strength to the mold as the particles of sand are stuck together. Clay is the most common material in Green sand casting, as in resin sand casting, resin is used to obtain more precision and better strength of the mold. These materials will ensure that the mold is flexible to the heat of molten metal.

4. Additives

Additives are usually added to sand or aluminum to improve certain aspects of its behaviour, like surface finish, strength, and to reduce its defects like porosity. The additives are necessary in order to ensure that high-quality castings are done with minimal flaws.

5. Inclusion and Metal Devices

The alloys of aluminum are blended with metal elements like copper, magnesium and silicon to enhance some properties like strength, corrosion resistance, and hardness. They play a crucial role in the production of parts that are resistant to harms that are present in extreme environments, such as in car or aerospace parts.

6. Other Materials used in Speciality Casting Types

Patterns are formed and molded out of materials like wax or even ceramics, where, in a process called shell molding or lost foam casting they are used. These materials ensure production of the complex, accurate components, particularly in the industries that call upon the complicated design, e.g. in industries with the development of high-performance.

Advantages of Sand Casting Aluminum

The process of sand casting of aluminum has several benefits that make its application in many industries preferable:

• 비용 효율성: Sand casting is one of the cheaper forms of metal casting, and as such, this renders it more low-medium level production runs. The costs material-wise are less, as the sand moulds can also be recycled.
• Flexibility: It is a highly flexible procedure which can be used to manufacture parts of immense variation in sizes and shapes, complexities. The sand casting can be used to produce simple geometries and complex designs and hence can meet a variety of design requirements.
• It is tolerant of complicated shapes: Aluminum sand casting is able to produce more complicated shapes that other casting techniques cannot easily make, such as internal cavities and undercuts.
• Ability to Cast Large Parts: An ability to cast large parts is also possible in sand casting, compared to other metal casting strategies that are unable to cast large parts. It is the reason why it can be applied to manufacture big sections of cars or aircraft.
• Kind of Material: Aluminum is not the only metal which can be cast into a sand mold. Other metals, as well, can be cast (i.e. copper, steel and iron), thus giving the manufacturer additional options when it comes to the desired medium that is to be utilized in order to produce the desired product.
• Quick Turnaround: It is the process that can be involved in quite short turnaround times, especially when it comes to prototyping, as they have light tooling, and there is very little time wasted on setup procedures to be followed.

Disadvantages of Aluminum Sand Casting

Despite all the advantages, aluminum sand casting has two limitations:

• Poor Finishing of Surfaces: The surface finishing is less when using the sand casting compared with the other processes like die casting. Then there may be some manoeuvres as machining or sandblasting, that may be needed in order to improve the surface of the part.
• 다공성: Shrinkage defects or porosity (small holes in the cast material) can occur intermittently with sand castings. These things may lead to weaknesses and inferior performance of the parts, especially in high-stress situations.
• Dimensional Tolerance: Sand foundry is not de rigueur where close dimensional tolerances are involved. Sand castings can be extremely flexible but not as tight as the tolerances that can be attained in some of the other processes, like die casting or the investment casting process. Components may require additional processing to make them suit restrictive specifications.

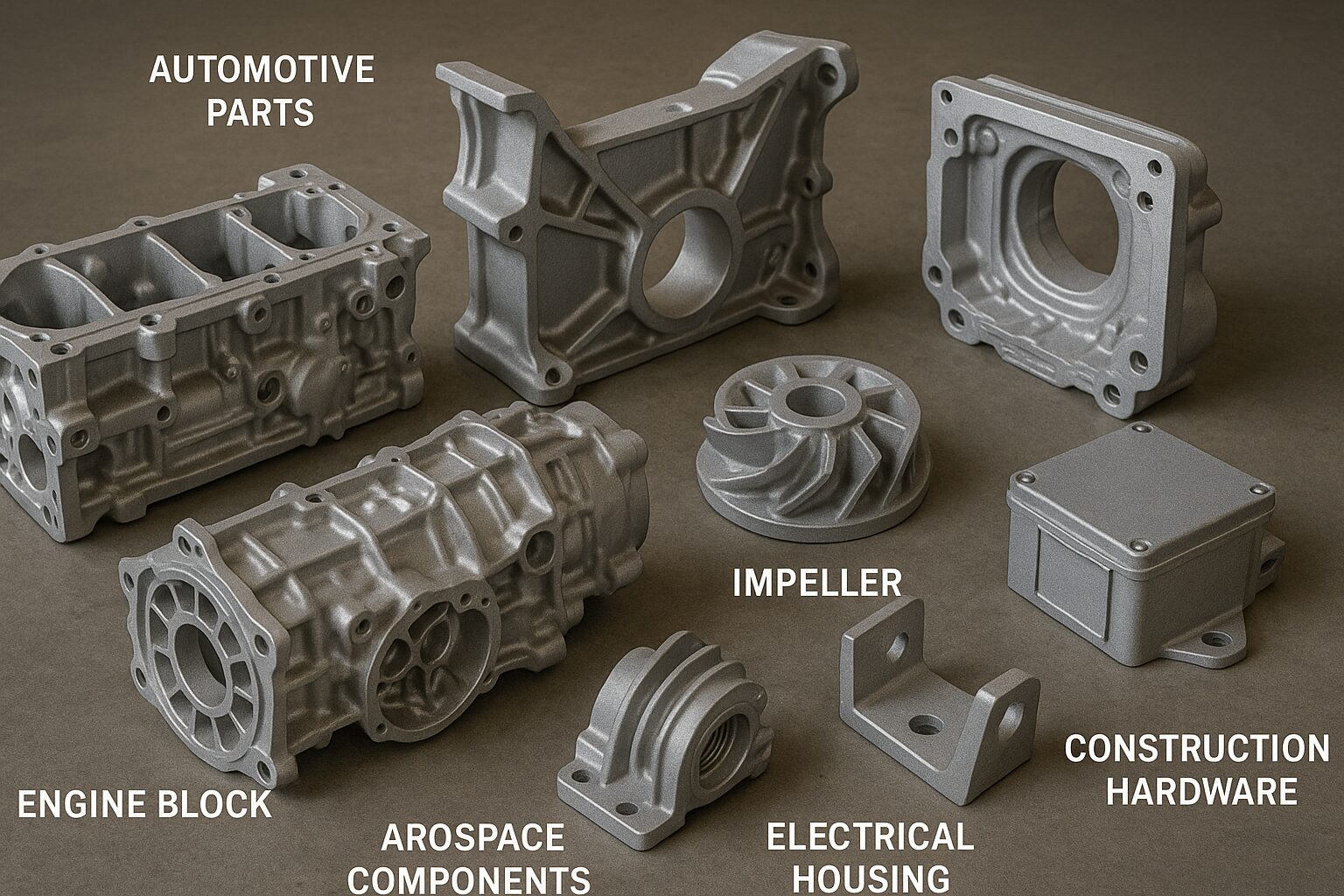

Uses of Aluminum Sand Casting

Aluminum sand casting has been applied in many industries that demand complex parts that are durable and light weight. Applications: Some of the common applications are:

• 자동차 산업: Casting of engine blocks, cylinder heads, transmission cases, etc. is usually done by making use of aluminum sand casting with high accuracy. The fact that it is used to generate complex patterns and hollow spaces is its most appropriate use by automotive manufacturers.
• 항공우주 산업: The Aerospace industry produces high-performance components in the form of aerospace engines, aerospace brackets, and aerospace housing with the aerospace industry using aluminum sand casting. It is also effective in aircraft because its lightweight characteristic is coupled with strength obtained by the casting technique.
• Industrial Equipment: Aluminum sand casting is commonly used in the creation of parts of industrial machines such as pumps, valves and gears. These materials should be long-lasting and wear-resistant, which is also provided by aluminum.
• 소비자 가전: Electronic products are retrofitted into enclosures done using the process, with its ability to transfer heat and resist corrosion, forming a good quality that is desired by aluminium.
• Marine Industry: Marine components within the marine industry, such as the components of the marine engines, propellers and housings of different marine equipment are commonly made of aluminium due to its corrosion resistance.

Future of Aluminum Sand Casting

There is a change in aluminum sand casting as technology and sustainability developments change.

1. Automation

Industry 4.0 and automation will make things more efficient and accurate to minimize errors and increase consistency with the help of robots and real-time data collection.

2. Advanced Alloys

The performance of cast parts will be improved by new alloys of aluminum that are of high strength and have superior thermal characteristics. This will be applicable, especially in automotive and aerospace.

3. Sustainability

The future will be on environmentally friendly casting processes, where aluminum used will be recycled, and the energy used and carbon emissions will be low, thereby making the process more sustainable.

4. Integration of 3D Printing

The molds and cores will be 3D printed with more complex designs which can lead to shorter lead time and can be more flexible in the production of the parts.

5. Smart Materials

Small materials with the ability of self-healing and sensors in cast components will improve functionalities and real-time reporting of crucial applications.

GC Precision Mould: The Best Quality Aluminum Sand Casting Solution You Can Trust

Because of this, we are the trusted company to provide high-quality aluminum sand casting services at GC precision mould. With experience and high-tech technology, we provide you with precision parts in your exact requirements. We guarantee innovative and cost-effective solutions, quality production, and efficiency regardless of whether you have low quantities to work with or need large mass production. Our clients are in the automotive industry, aerospace industry, and industrial equipment industry who rely on us to provide efficient, robust, and prompt services. When you need to order aluminum casting, select us and you shall have an unparalleled quality and service.

결론

Aluminum sand casting is an important manufacturing technology and it has played a critical role in the manufacture of lightweight, durable and complex components in many industries. It is affordable, flexible and allows the production of elaborate designs. Nevertheless, in spite of its surface finish and dimensional problems, it continues to be used in large volume manufacture of automotive, aerospace, and industrial products. Aluminum sand casting is versatile and cost-effective, which explains why the technique remains one of the production methods manufacturers turn to when they require an adequate and efficient technique of producing aluminum parts.

With proper knowledge of the important factors in the sand casting process, the strengths and the weaknesses of the process, industries should therefore make informed decisions on how to capitalize on this process when it comes to their manufacturing requirements.

자주 묻는 질문

1. So, which industries do GC Precision Mould work in?

GC Precision Mould offers the best aluminum sand casting services to different industries such as the automotive, aerospace, industrial equipment and consumer electronics industries. Our expertise is in the manufacturing of precision components, suiting your needs.

2. Why do customers prefer GC Precision Mould in the market?

We are the experts in our field with the most developed technology and environmental concerns. Our solution applications are unique, our manufacturing is efficient, our prices are favourable, and we deliver orders at the appropriate time so that every project is to your best standards of quality and effectiveness.

3. How long does an average project of an aluminum sand casting project take?

Depending on the complexity and quantity of casting needed, the turnaround time takes place. We collaborate with clients to come up with achievable timelines so as to deliver on time, whether it is prototypes or mass production, and maintain the high standards of quality.
