Zinc Die Casting, Its Process, Applications, and Design Tips

When it comes to manufacturing metal parts, zinc die casting part is a high-demand option. It uses different alloys to make complex zinc metal parts. These parts have strong mechanical properties. In addition to their strength, these parts possess exceptional mechanical properties. That is why they are widely used in different applications. Here, we will discuss these applications in detail. Additionally, we will discuss its whole process, design tips, advantages, disadvantages, and alternatives in detail.

How would you define zinc die casting?

It is a metal alloy casting process. First, the zinc alloy melts down into a molten state. Next, high pressure forces the molten zinc into a die cavity (metal die casting mold). Then the zinc attains the shape of a die. The zinc then cools down and is ejected from the die. Therefore, this technique is best suited for making large volumes of medium-zinc alloy parts. People often use this process to produce highly accurate parts. Additionally, it can deal with different zinc alloys, i.e., Zamak (zamak 3, zamak 5), and ZA series.

What are the processes involved in zinc die-casing?

Here is a detailed description of the steps involved in zinc die casting components.

1. Design and tooling

Zinc die casting begins with the design phase. This phase may include the zinc alloy part design and tooling design. The engineers use smart software, i.e., CAD or CAM, to design the parts and tools. They add all the little details to the designs to ensure the zinc alloy part’s precision. They carefully consider the following aspects of part design:

zinc die casting manufacturer

  • Draft Angle: The engineers set the draft angles between 1-3 degrees. It helps remove the zinc alloy part from the die.
  • Wall Thickness: They maintain a uniform wall thickness. So, they can prevent defects and allow proper filling.
  • Ribs and Fillets: The engineers incorporate ribs and fillets into their designs. The ribs contribute to the strengthening of the metal alloy component. The fillets assist in avoiding sharp corners to prevent stress.

Furthermore, in tooling design, the engineers first make a die or mold. Engineers typically construct this from high-quality steels like H13, 8407, and 1.2344. So, this die comprises two halves, i.e., the cover die (fixing half) and the ejector die (moving half). Therefore, we have properly designed the die to align with the CAD designs. It guarantees that the final part will be exactly like a die.

2. Melting and Injection

This step includes the melting of the zinc material. This is usually done in a furnace. Here, we make sure to adjust the temperature between 700°F and 800°F (370°C and 430°C). This range helps to keep the zinc metal in a molten state. After that, the molten zinc is allowed to be injected into the die-casting machine. This machine comprises a punch, a die cavity, and a cooling chamber. After injecting the molten alloy into the machine, the punch applies high pressure, forcing it into the die cavity. Then the molten zinc takes on the shape of a die and achieves all of its dimensions.

3. Cooling and solidification

After the injection process, the molten zinc is cooled by the cooling system. The steel mold starts to cool down the molten zinc rapidly. But this cooling has certain limits. So, it is usually fastened up using the cooling channels. The coolant, or water, is allowed to pass through this channel. They help cool the zinc. After cooling, the zinc starts to solidify. At this stage, it takes the mold dimensions. Besides this, fast cooling helps get fine-grained structures with high strength. Additionally, this cooling time depends on the part size and its complexity. Simpler designs cool down earlier.

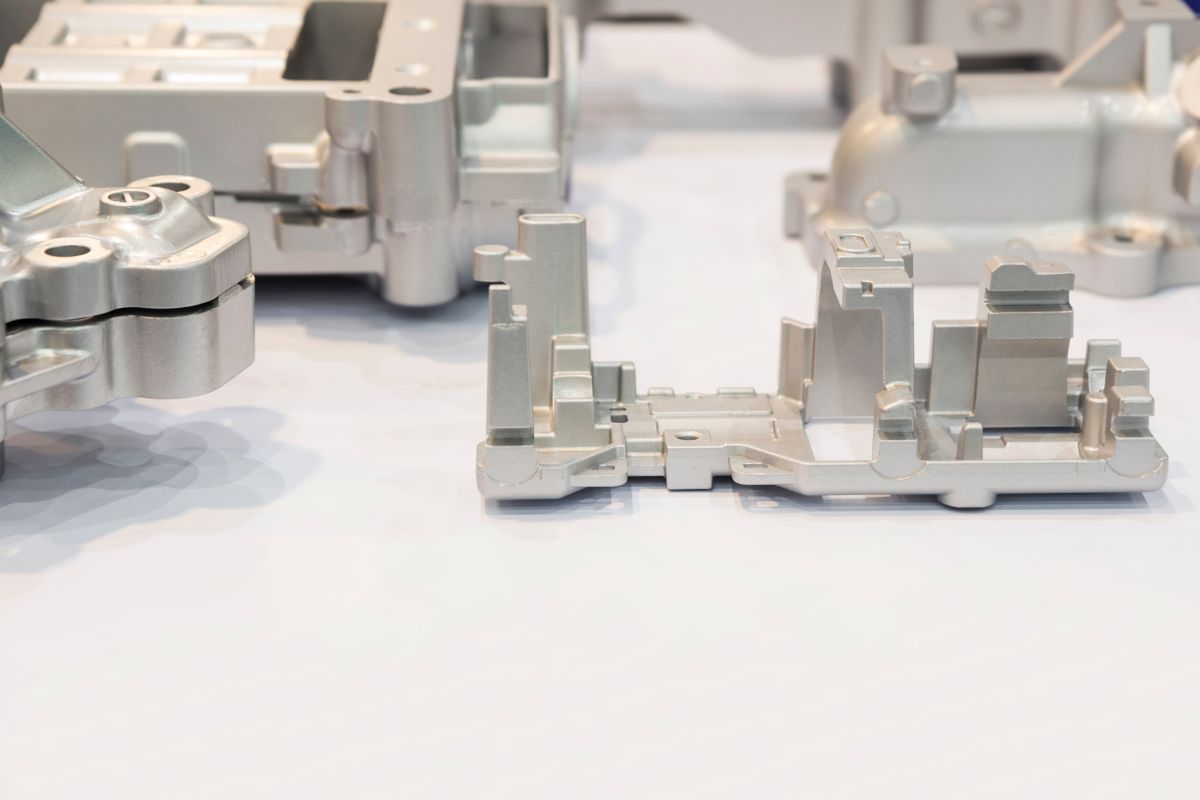

zinc die casting

4. Ejection and Trimming

The zinc die casting process’s final step is the ejection and trimming of the zinc part. After solidification, the die opens. Then the ejector pins start to push the part out of the mold. This mold is designed smartly. It can easily come out of the die cavity without causing any damage. Additionally, if there is excessive material, i.e., flash, it attaches around the edges of the zinc part. It is important to remove it. The trimming process accomplishes this. This process can use different mechanical operations, such as cutting, grinding, or filing. All of these processes result in the production of fine parts.

5. Secondary Processes

Some parts are finalized after trimming. But a few of them need additional processes. They can get a better appearance and specific dimensions. For example, drilling holes, threading, or refining surfaces. While some parts may need better appearance and additional properties like corrosion resistance and functioning, they can undergo the painting process. Moreover, some zinc parts may need durable finishing. They can tolerate harsh environmental conditions; they may undergo a powder coating process.

image 15 8

Commonly Used Zinc Alloys for Die Casting

Here are the different alloys of zinc. They have various applications in different fields. Let’s discuss their properties, composition, and applications in detail.

Alloy of Zn

Composition

Properties

Typical Applications

Zamak 3

Zn 96%, Al 4%, Mg 0.03%

Good balance of strength, ductility, and castability

Automotive parts, hardware, electrical housings

Zamak 5

Zn 95%, Al 4%, Cu 1%

Higher strength and hardness, good creep resistance

Gears, levers, small mechanical components

Zamak 7

Zn 99.99%, Al 0.05%, Mg 0.01%

Superior ductility and fluidity, high purity

Electronic connectors, precision components

Zamak 2

Zn 94%, Al 4%, Cu 3%

Highest strength and hardness among Zamak alloys

Heavy-duty mechanical parts, tools

ZA-8

Zn 92%, Al 8%, Cu 1%

High strength and hardness, good bearing properties

Bearings, bushings, small machinery parts

ZA-12

Zn 88%, Al 12%, Cu 1%

High strength, hardness, good castability

Structural parts, high-load components

ZA-27

Zn 73%, Al 27%, Cu 2%

Highest strength and hardness, lower density

Heavy-duty applications, large machinery parts



Fundamental Design Tips for Zinc Die Casting

Here are some important tips, you can use to make zinc die casting more effective and efficient.

Design Aspect

Fundamental Tips

Simplified Drawings

Draft Angles

Incorporate draft angles (typically 1-3 degrees).

image 15

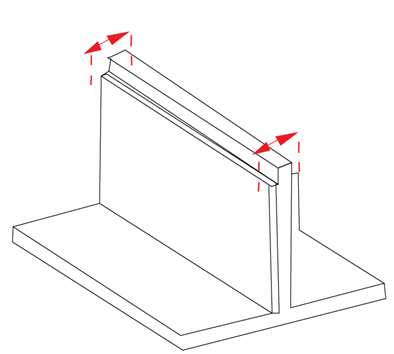

Wall Thickness

Maintain uniform wall thickness (0.040-0.120 inches for zinc).

image 16

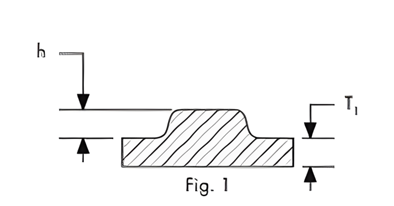

Ribs

Add ribs to strengthen areas without increasing overall thickness.

image 17

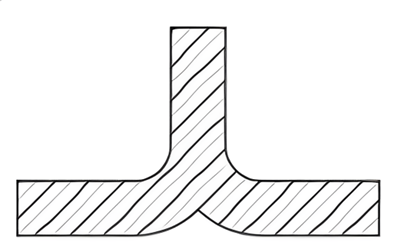

Fillets

Use fillets instead of sharp corners (radius of 0.020 inches or more).

image 18

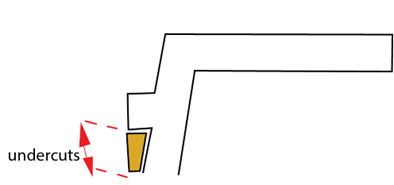

Undercuts

Minimize undercuts or use slide cores if necessary.

image 19

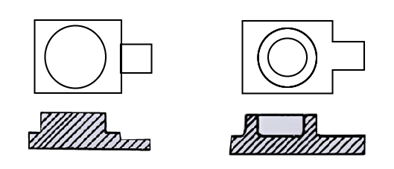

Bosses

Design bosses with appropriate height and diameter (1:1 to 3:1 ratio).

image 20

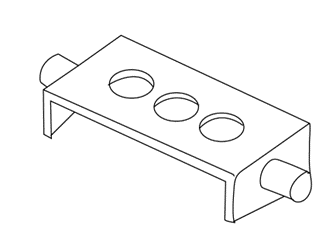

Holes and Slots

Design with consistent size and spacing (minimum diameter of 0.040 inches).

image 21

Texturing

Add textures to flat surfaces to improve aesthetics.

image 22

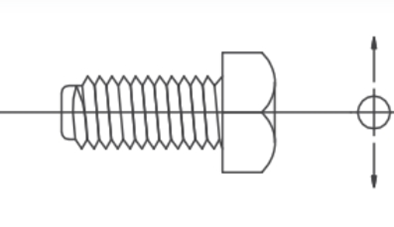

Tolerances

Use realistic tolerances (±0.002 to ±0.005 inches).

image 23

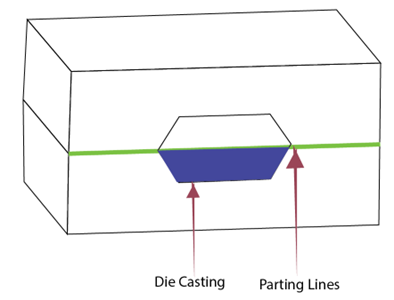

Parting Line

Position the parting line strategically.

image 24

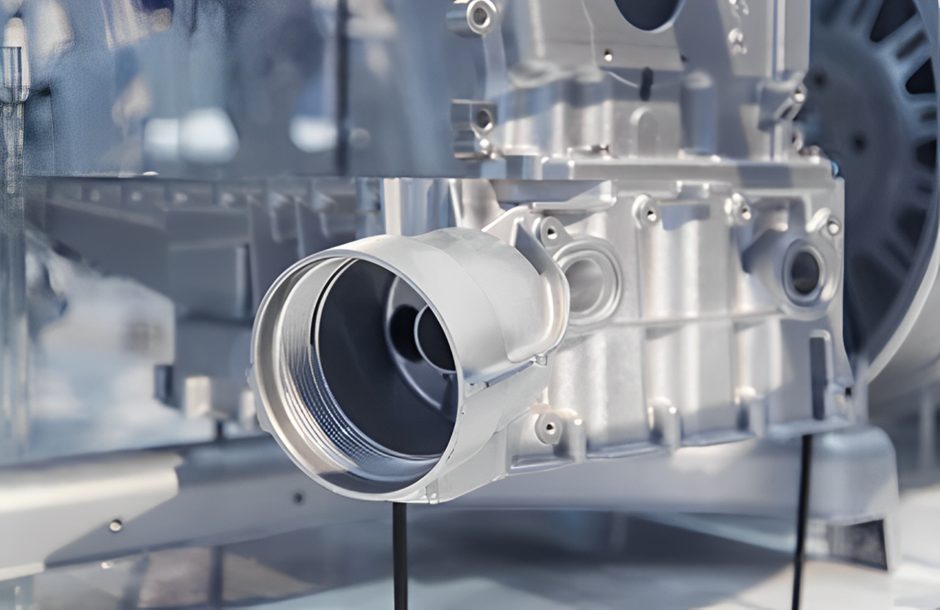

Applications of the Zinc die-casting

Like other processes, Zinc die-casting is also widely used in different industries. Let’s discuss its applications in detail.

image 25



1. Automotive Industry

Zinc die-casting has many applications in the automotive sector. It is used to make precise and durable parts. They may include carburetors. These carburetors need high-dimensional accuracy and surface finishing. Zinc die casting is the best option to go with. Besides this, some brake parts need high strength and reliability. So, in this case, zinc die casts are good options. Moreover, zinc die casting has many applications to make parts that can manage stress and wear.

2. Electronics Industry

Zinc die casting has found applications in the electronics industry. It helps make complex and detailed parts. These parts show excellent electrical conductivity and shielding properties. Besides this, zinc die casts are lighter in weight. Hence, they provide strength and durability. Moreover, electrical connectors demand precision and consistent shapes. Here, zinc die castings fit very well. It also helps dissipate heat from electronic components. Overall, it increases the performance and longevity of the component.

3. Consumer Goods

In this sector, zinc die casting is a relatively cost-effective solution. It can add aesthetics to functional parts. Moreover, it is quite durable and easy to operate. So, it is widely used in making bulk quantities with customized shapes and dimensions. It is used to make different products. They usually include luggage, doors, and appliances. It is because of their strength and aesthetic finishing.

4. Industrial Equipment

Besides other sectors, zinc die-casting has many applications in industrial sectors. It is used to make different components. These generally need high precision and strength. Moreover, they have high resistance to tough environmental conditions. The best example is pump components. Zinc die-castings help make these parts. They are usually housings and impellers. Moreover, this process is widely used to make valves, machinery, and equipment as well.

What are the pros of zinc die-casting?

Just like other methods, zinc die casting also offers different benefits. Let’s discuss these in detail.

1. Precision

This technique gives high-dimensional accuracy. It is capable of producing complex details. Besides this, zinc die-casting is ideal for making parts that need tight tolerance. Its precision itself proves that the final product will surely meet the design specifications. It will help reduce the extensive post-casting processes and machining. Besides this, it also minimizes the need for finishing.

2. Strength and Durability

Zinc die casting allows various alloy usages. These alloys need excellent mechanical properties. They may include good impact resistance and tensile strength. Besides this, it makes zinc die-cast parts strong and durable. So, the part becomes more capable of bearing significant mechanical stress and wear. That is why zinc die-casting is extensively used in applications, i.e., automotive and industrial equipment.

3. Surface Finish

Zinc die casting helps make parts with smooth surfaces. So, it is really easy to apply plating and finishing. Along with this, it has an inherent surface quality. So, it allows different post-casting processes. They may include painting, powder coating, and electroplating. So, the zinc die casts guarantee aesthetic appeal and corrosion resistance. Besides this, it also produces highly precise final products.

4. Efficiency

Zinc die-casting is an efficient and reliable way to make metal parts. It has high production rates with minimal machining required. Moreover, it can make large quantities. So, they’re suitable for making high-volume production runs. Thus, they decrease the manufacturing time and cost.

5. Cost-Effective

This technique is very economical compared to other die-casting methods. It gives itself a smooth finish. So, there is no need for secondary operations. But yes, the initial cost of zinc die casting is quite high, i.e., the tooling design cost. But when it comes to bulk production, The cost decreases and gives consistent results.

What are the cons of zinc die-casting?

Like advantages, zinc die-casting also has some drawbacks. So, let’s discuss them here.

1. Size Constraints

The zinc die-casting suits small or medium-sized productions. If you try to make large-size parts, Then this process offers limitations. It generally happens because of the die-casting machines and mold sizes. So, you can find other alternatives to make the large parts.

2. High Initial Cost

As we have discussed earlier, the zinc die-casting method needs specific designs and tooling. So, it is obvious that it has a higher cost than other techniques. So, this makes it less useful for small productions. However, this can be used to produce large production volumes with consistent designs.

3. Thermal conductivity

Zinc alloys are better thermal conductors than other metals. So, it becomes difficult to deal with heat during the process. So, you need to carefully design the mold. Besides this, you also need to add appropriate cooling strategies to avoid any defects.

What are the alternatives available for zinc die casting?

By comparing both the benefits and drawbacks of zinc die-casting, we can try using different alternatives to get the desired parts. So, their explanation is in the below table.

Alternative

Material

Advantages

Disadvantages

Applications

Aluminum Die Casting

Aluminum alloys

Lightweight, corrosion-resistant

Higher melting point

Automotive parts, aerospace components

Magnesium Die Casting

Magnesium alloys

Very lightweight, good strength-to-weight ratio

More expensive material

Consumer electronics, automotive components

Plastic Injection Molding

Thermoplastics

Lightweight, versatile

Lower strength and durability

Consumer goods, medical devices

Sand Casting

Various metals

Good for large parts, lower tooling cost

Rough surface finish, lower accuracy

Engine blocks, large machinery parts

Investment Casting

Various metals

High precision, excellent surface finish

High cost, longer production time

Turbine blades, medical implants

Powder Metallurgy

Metals and alloys

High precision, minimal waste

Smaller parts, high tooling costs

Gears, bearings, structural parts

Stamping

Metals

High-speed production, low cost

Flat or simple shapes, high initial tooling cost

Automotive panels, electronic components

Forging

Metals

High strength, excellent durability

Simpler shapes, higher material waste

Automotive, aerospace components

Conclusion

In conclusion, zinc die-casting is a smart technique for making metal parts. It has many applications across many industries. Here, the zinc metal turns into a molten state and is injected into a furnace. After that, it undergoes high pressure and is inserted into the die cavity. Then it starts to attain the shape of mold and is allowed to cool down. After solidification, the zinc part ejects out of the die cavity and checks if it needs trimming or surface finishing. So, this is quite a simple step. This is significantly used to make small parts and cater to large productions. So, it is widely used in many industries.

Frequently Asked Questions

Q1. How can you compare zinc die casting with aluminum die casting?

Well, both zinc die casting and aluminum die casting components start with melting the metal, and then it attains the shape of the mold. But zinc die casts have precision and a surface finish. On the other hand, aluminum die casts are useful for lighter parts with good corrosion resistance.

Q2. Can you recycle the zinc die-cast parts?

Absolutely Yes, zinc die-cast parts are thermal conductors. So, they can easily melt down at certain temperatures. So, they are fully recyclable and highly good for the environment.

Q3. What post-processing techniques are generally used to make zinc die-cast parts?

There are multiple. So, the most common post-processing techniques are machining, plating, painting, and powder coating.
